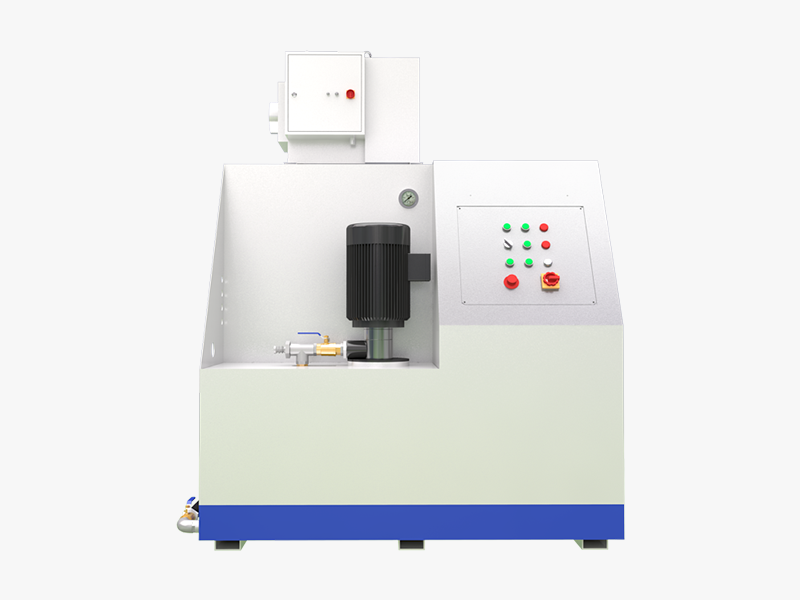

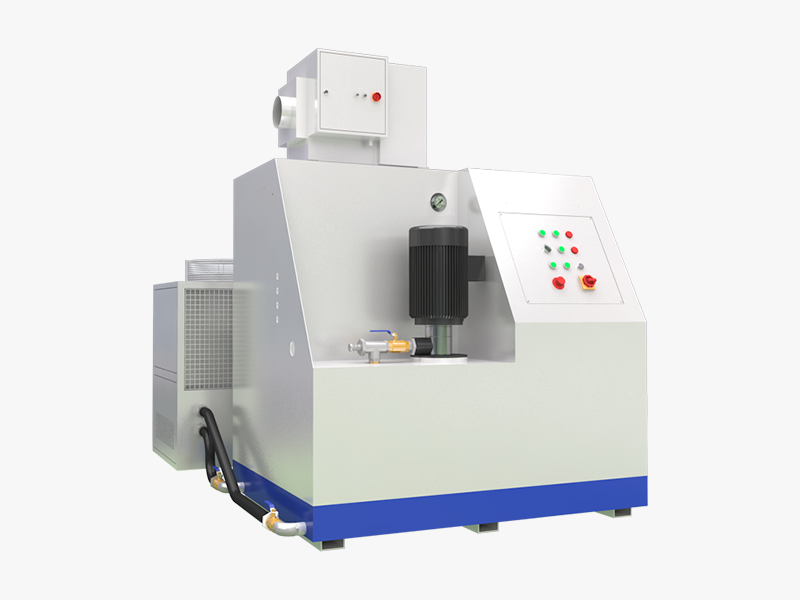

Cooling Filter


Main Features

  • Integrated Cooling Filter is totally automated, completely coupled with the Giveal series of grinding machine;

  • Equipped with a variety of sensors, to support real-time monitoring of filter element life, cooling oil, oil temperature adn so on. And inform the user about these changes;

  • Automatics Recoil System greatly improves service time of the device.

  • Adopts unique design to improve the structure of heat exchanger for  preventing failures that may occur;

  • Realize efficent filtration and oil cooling of the grains with 1.0μm diameter is an indispensable companion for CNC tool grinder;

  • It can upgrade the capacity to achieve the function of "one carry two". For multi device, we also provide customized solutions such as one carry six, one carry ten, one carry twenty and so on;

.Download the manual on GIVEAL series products>>

Fully automatic control, and running in the silence without need for any human intervention.

Technical Specifications

Length(mm) Width(mm) Height(mm)
Voltage(v)
Power(kw)
1920
2240
2080 380

Special options

· Integrated air compressor:

   The installation of air compressor can easily integrate small type air compressor and air reservoir, control the size of floor area, and help the deployment of "a machine-factory".

· Integrated oil mist separator:

  The top of the cooling filter can integrate with oil mist separator to help recycled oil and gas directly back into the filtration system, avoiding the prolix tube and the traces.

· Integrated static oil mist separator:

  Static oil mist separator also can be as an option available, and the oil and gas recycle rate could reach up to 99%.

* We reserve the right to change the above technical parameters without prior announcement.
